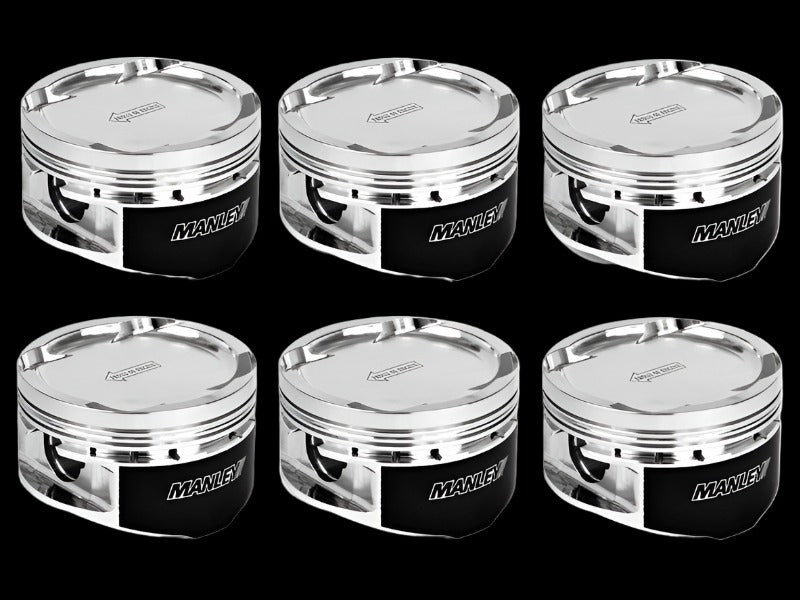

Manley Forged Turbo Tuff 94mm Stroker Pistons Toyota Supra MK4 2JZ-GTE 86.25mm +0.25mm -14 cc 9.0:1

Manley Forged Turbo Tuff 94mm Stroker Pistons Toyota Supra MK4 2JZ-GTE 86.25mm +0.25mm -14 cc 9.0:1

$1,480.00 USD
$1,480.00 USD
Sale Sold out
Shipping calculated at checkout.
  • 2618 high strength material
  • 2.250 x .250" wall 9310 alloy pin included P/N 42552
  • Moly Coated Skirts
  • Pressure balance groove
  • Will accommodate +1mm valve sizes
  • Vertical Gas Ports designed for high HP Race Engines
  • Premium Steel top rings with Napier seconds and round wire locks included
  • Recommended piston clearance .0035" measured .850" from the bottom of the oil ring

Specifications

More Information
Availability New In Stock / Available
Item Weight 340 g
Shipping Weight (Dimensional) 8.000000
Clearance Sale No
Availability Available
Part Type Pistons
Make Toyota / Lexus
Vehicle Model Supra
Model Supra TT MK4 93-98 JZA80, Supra NT MK4 93-98 JZA80, SC300/Soarer 92-00 Z30, IS300 01-05 XE10, GS300/Aristo 91-97 S140, GS300/Aristo 98-05 S160
Engine 2JZ-GE, 2JZ-GE VVTi, 2JZ-GTE, 2JZ-GTE VVTi
Rod Length 5.590" / 142mm
Rod Length Oversize Standard Length
Bore Diameter 86.25mm
Bore Oversize 0.010" / 0.25mm
Stroke 94mm (3.4L Stroker)
Compression Ratio 9.0:1
Compression Ratio Range 8.0:1 - 9.0:1, 9.0:1 - 10.0:1
Pin Size 0.866" / 22mm
Included Ring Set 47862-6
Included Pin Locks 42270-12
Included Pin 42552-6
Head cc 45 cc
Face Type Dish
Dome cc -14 cc
Compression Height 1.170" / 29.72mm
Piston Coating Skirt Coating
Brand Manley Performance
Skirt Type Full Round
Piston Material 2618
Carb Legal Unspecified
Wrist Pin Wall Thickness 0.250"
Wrist Pin Dimensions .866" x 2.250" x .250"
Pin Material 9310 Steel
