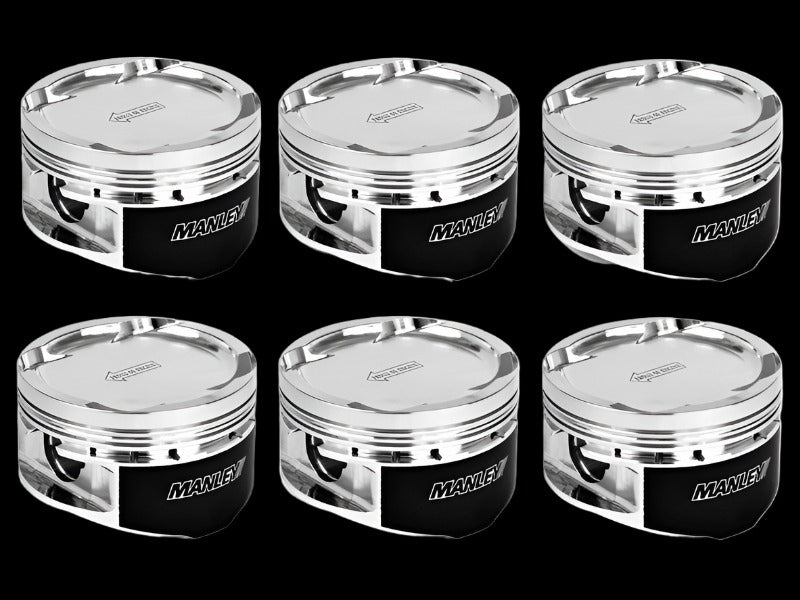

Manley Forged Turbo Tuff 90mm Stroker Pistons Supra MK4 2JZ-GTE 86.75mm +0.75mm Bore -4 cc 9.0:1

Manley Forged Turbo Tuff 90mm Stroker Pistons Supra MK4 2JZ-GTE 86.75mm +0.75mm Bore -4 cc 9.0:1

$1,185.33 USD
$1,185.33 USD
Sale Sold out
Shipping calculated at checkout.
  • 2618 high-strength material
  • 2.250 x .250" wall 9310 alloy pin included P/N 42552
  • Pressure balance groove
  • Will accommodate +1mm valve sizes
  • Vertical Gas Ports designed for high HP Race Engines
  • Premium Steel top rings with Napier seconds and round wire locks included
  • Recommended piston clearance .0035"" measured .850"" from the bottom of the oil ring

Specifications

More Information
Availability New In Stock / Available
Barcode 807298044491
UPC Code 807298044491
Shipping Weight (Dimensional) 7.500000
Clearance Sale No
Availability In Stock
Part Type Pistons
Make Toyota / Lexus
Model Supra TT MK4 93-98 JZA80, Supra NT MK4 93-98 JZA80, SC300/Soarer 92-00 Z30, IS300 01-05 XE10, GS300/Aristo 91-97 S140, GS300/Aristo 98-05 S160
Engine 2JZ-GE, 2JZ-GE VVTi, 2JZ-GTE, 2JZ-GTE VVTi
Bore Diameter 86.75mm
Bore Oversize 0.030" / 0.75mm
Stroke 90mm (3.2L Stroker)
Compression Ratio 9.0:1
Compression Ratio Range 9.0:1 - 10.0:1, 10.0:1 - 11.0:1
Pin Size 0.866" / 22mm
Included Pin 42552-6
Head cc 45 cc
Dome cc -4 cc
Compression Height 1.250" / 31.75mm
Brand Manley Performance
Skirt Type Full Round
Piston Material 2618
Carb Legal Unspecified
Wrist Pin Wall Thickness 0.250"
Wrist Pin Dimensions .866" x 2.250" x .250"
Pin Material 9310 Steel
