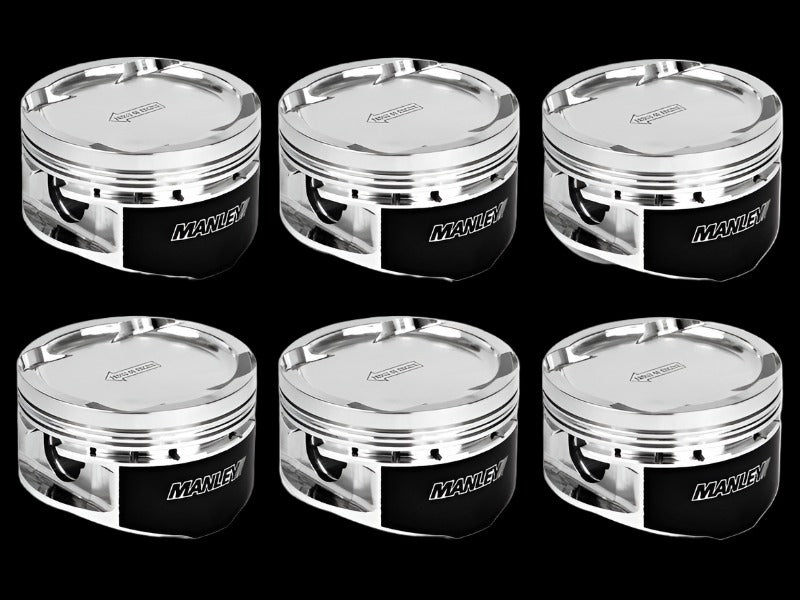

Manley Extreme Duty Forged 94mm Stroker Pistons Toyota Supra MK4 2JZGTE 2JZ-GTE 86.5mm -8cc 10.0:1

Manley Extreme Duty Forged 94mm Stroker Pistons Toyota Supra MK4 2JZGTE 2JZ-GTE 86.5mm -8cc 10.0:1

Regular price $1,226.00 USD
Regular price Sale price $1,226.00 USD
Sale Sold out
Shipping calculated at checkout.

Manley pistons are machined of high strength 2618 material. Each design is robust enough to deliver long service life. Offset wrist pin design is utilized for quiet start-ups. Perfect ring groove to skirt squareness is achieved through our unique "one fixturing" manufacturing method that assures maximum horsepower. All pistons come with moly coated skirts and will accommodate +1mm valve sizes. Round wire locks, premium chrome moly wrist pins, and premium steel top ring sets from Total Seal are included with every kit at no additional charge.

Recommended clearance: .0035" measured 1.100" down from the bottom of the oil ring groove.

  • 2618 high strength material
  • Offset wrist pin for quiet start-ups
  • 9310 alloy .210” wall pin (Extreme Duty Series) include
  • Pressure balance groove
  • Will accommodate +1mm valve sizes
  • Premium Steel top rings with Napier seconds and round wire locks included
  • Recommended piston clearance .0035” measured 1.100” from the bottom of the oil ring

Specifications

More Information
Availability New In Stock / Available
Barcode 807298088587
UPC Code 807298088587
Item Weight 322 g
Shipping Weight (Dimensional) 8.000000
Clearance Sale No
Availability Available
Part Type Pistons
Make Toyota / Lexus
Vehicle Model Supra
Model Supra TT MK4 93-98 JZA80, Supra NT MK4 93-98 JZA80, SC300/Soarer 92-00 Z30, IS300 01-05 XE10, GS300/Aristo 91-97 S140, GS300/Aristo 98-05 S160
Engine 2JZ-GE, 2JZ-GE VVTi, 2JZ-GTE, 2JZ-GTE VVTi
Rod Length 5.590" / 142mm
Rod Length Oversize Standard Length
Bore Diameter 86.5mm
Bore Oversize 0.020" / 0.5mm
Stroke 94mm (3.4L Stroker)
Compression Ratio 10.0:1
Pin Size 0.866" / 22mm
Included Ring Set 46866-6
Included Pin Locks 42270-12
Included Pin 42551-6
Head cc 45 cc
Face Type Dish
Dome cc -8 cc
Compression Height 1.180" / 30mm
Piston Coating Skirt Coating
Brand Manley Performance
Skirt Type Full Round
Piston Material 2618
Carb Legal Unspecified
Wrist Pin Wall Thickness 0.210"
Wrist Pin Dimensions .866" x 2.250" x .210"
Pin Material 9310 Steel
