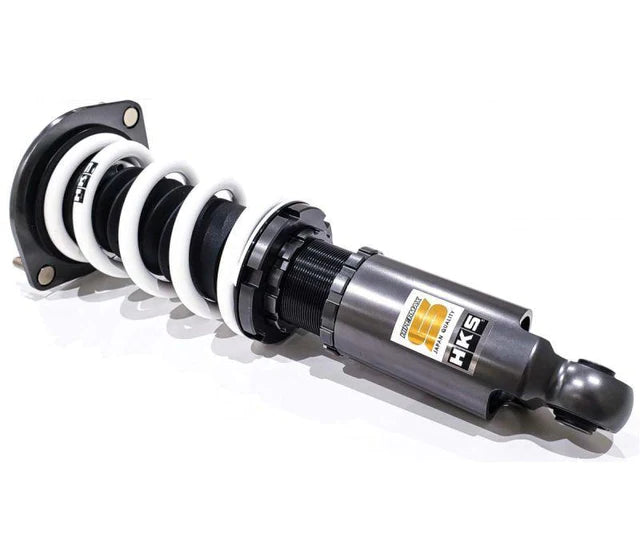

HKS HIPERMAX S Coilovers Toyota Supra MKIV 1993-1998 2JZ-GTE JZA80 80300-AT010

HKS HIPERMAX S Coilovers Toyota Supra MKIV 1993-1998 2JZ-GTE JZA80 80300-AT010

Regular price $1,850.00 USD
Regular price Sale price $1,850.00 USD
Sale Sold out
Shipping calculated at checkout.

Hipermax S Full Kit by HKS

HKS will integrate and renew the three existing MAXIV GT Series into HIPERMAX S. 9 years have passed since the launch of MAXIVGT, and during that time, we have developed new technologies. It will be a new series that has all three conventional model's characteristics, and been evolved by damping force characteristics, durability and beauty. The HIPERMAX S Series offers the best ride in HKS suspension history.


  • Spring Rate [N/mm(kgf/mm)]: F=137(14.0) | R=78(8.0)
  • Spring Length (mm): F=200 (Straight) | R=250 (Straight)
  • Height at Factory (Upper-Lower): F=-31(0 to -92) | R=-13(0 to -77)
  • Upper Mount: F=Rubber | R=Rubber
  • Spring Rate Change at Factory [Changeable Spring Rate N/mm(kgf/mm)]: F=Not Recommended | R=Not Recommended


  • Dual PVS. We evolved the existing preload valve system to the dual preload valve system to suppress the generation of unnecessary damping force during higher piston speeds. This provides major improvement in ride comfort without influencing the driving performance.
  • Wide Range Damping Force Adjustment Mechanism. The improved shape of the Needle Jet expand the range of damping force adjustment. This makes us possible to handle driving on a wider range of stages.
  • Evolution of Bump Stop Rubber. A new shape of bump stop rubber reduces the body roll and achieves ride comfort at the same time which cannot be achieved with general hydro bump stop rubber.
  • Low Friction Technology. With advanced tribology technology, we have achieved even higher durability and lower friction than conventional products. This technology contributes to improved ride quality and handling performance.
  • 3-Years Warranty. Compared to the one-year warranty period of the conventional MAX V GT series, the HIPERMAX S Series has a three-year warranty due to the optimization of internal parts and quality improvement.
  • Single Tube
  • 30 Levels Adjustable Damping
  • Shock-Body Length Adjustable
  • Special Oil
  • PNE Coating
  • Dual Pre-Load Valve System
  • Aluminum Bracket
  • Rubber Upper Mount
  • Spec. Change Available
  • Overhaul Available

Please Note: Not compatible with the model equipped with REAS. Installable if the hydraulic device is removed.
