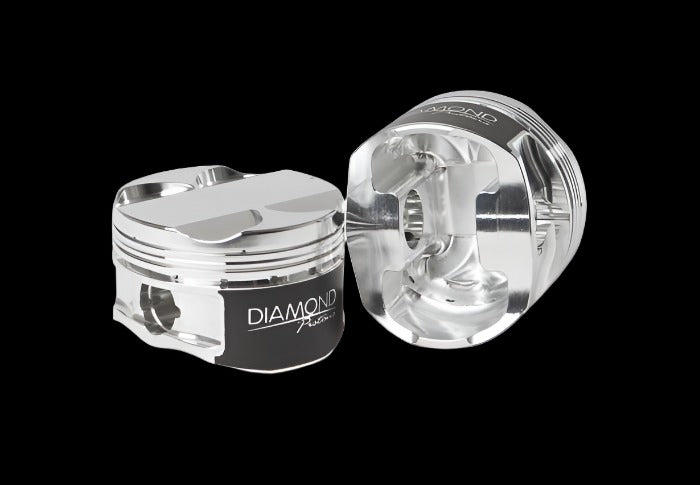

Diamond Racing Forged Pistons Set Toyota Supra MK4 2JZGTE 2JZ-GTE 2JZ-GE 86mm STD -14.5cc 8.5:1
Diamond Racing Forged Pistons Set Toyota Supra MK4 2JZGTE 2JZ-GTE 2JZ-GE 86mm STD -14.5cc 8.5:1
Regular price
$989.95 USD
Regular price
Sale price
$989.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Forced pin oilers from the oil ring; Pin Fitted; Side Gas Ports; Moly Coated Skirts; 3D Dome & Pockets; Pins, Lock's & Support Rails (if required) included
|
Vendor Name Code Part Number |
37000-6 |
| Availability New | In Stock / Available |
| Barcode | 37000-6 |
| Shipping Weight (Dimensional) | 8.000000 |
| Clearance Sale | No |
| Availability | Available |
| Part Type | Pistons |
| Make | Toyota / Lexus |
| Vehicle Model | Supra MKIV |
| Model | Supra TT MK4 93-98 JZA80, Supra NT MK4 93-98 JZA80, SC300/Soarer 92-00 Z30, IS300 01-05 XE10, GS300/Aristo 91-97 S140, GS300/Aristo 98-05 S160 |
| Engine | 2JZ-GE, 2JZ-GE VVTi, 2JZ-GTE, 2JZ-GTE VVTi |
| Rod Length | 5.590" / 142mm |
| Rod Length Oversize | Standard Length |
| Bore Diameter | 86mm |
| Bore Oversize | Standard Bore |
| Stroke | 86mm (Standard Stroke) |
| Compression Ratio | 8.5:1 |
| Compression Ratio Range | 8.0:1 - 9.0:1 |
| Pin Size | 0.866" / 22mm |
| Included Ring Set | 09513385 |
| Included Pin Locks | 015113-12 |
| Included Pin | G8662250180C |
| Head cc | 45 cc |
| Face Type | Dish |
| Dome cc | -14.5 cc |
| Compression Height | 1.338" / 34mm |
| Piston Coating | Skirt Coating |
| Brand | Diamond Racing Pistons |
| Skirt Type | Full Round |
| Piston Material | 2618 |
| Carb Legal | Unspecified |
| Wrist Pin Wall Thickness | 0.180" |
| Wrist Pin Dimensions | .866" x 2.250" x .180" |
| Pin Material | 4130 Chrome Moly Steel |
