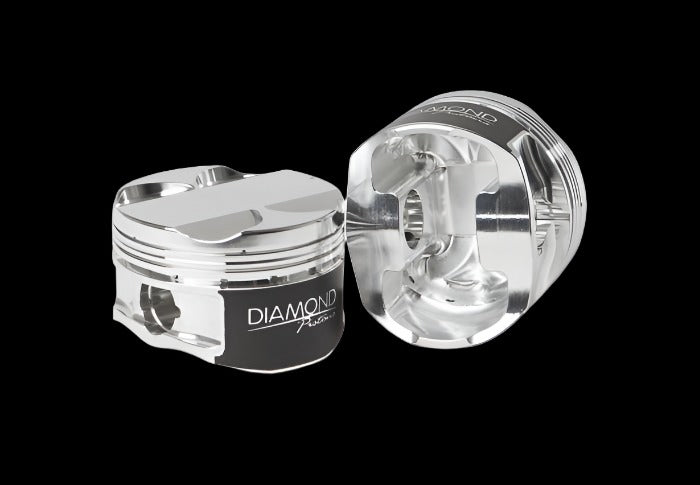

Diamond Racing Forged Pistons HD Pin Supra MK4 2JZGTE 2JZ-GTE 2JZ-GE 86.5mm +0.5mm -3.5cc 10.1:1
Diamond Racing Forged Pistons HD Pin Supra MK4 2JZGTE 2JZ-GTE 2JZ-GE 86.5mm +0.5mm -3.5cc 10.1:1
Regular price
$1,064.46 USD
Regular price
Sale price
$1,064.46 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Forced pin oilers from the oil ring; Pin Fitted; Side Gas Ports; Moly Coated Skirts; 3D Dome & Pockets; Pins, Lock's & Support Rails (if required) included
| Product Specifications | Details |
|---|---|
| Item Number | 37019-6 |
| Engine Make | Toyota |
| Bore | 86.5mm |
| Stroke | 86.0mm |
| Rod | 5.590 |
| Comp Height | 1.338 |
| Weight | call |
| Pin | .866 x 2.250 |
| CC | -3.5cc |
| Comp Ratio | 10.1 |
| Cylinder Head Chamber CC | 45 |
| Ring Thickness | 1.0mm x 1.2mm 2.8mm |
| VP Intake Depth | 0.245 |
| VP Exhaust Depth | 0.230 |
| Cylinders | 6 |
| Barcode ID | 686162215102 |
| Class | DIA-ASC-PSSK |
| Product Relations | Details |
|---|---|
| Product Line | Toyota 2JZGTE |
| Pins Included | Y |
| Pin Part# | G8662250180C |
| Rings Included | Y |
| Ring Part# | 09513405 |
| Rails Included | N |
| Support Rail Part# | N/A |
| Locks Included | Y |
| Lock Ring Part# | 015113-12 |
| Country of Origin | USA |
