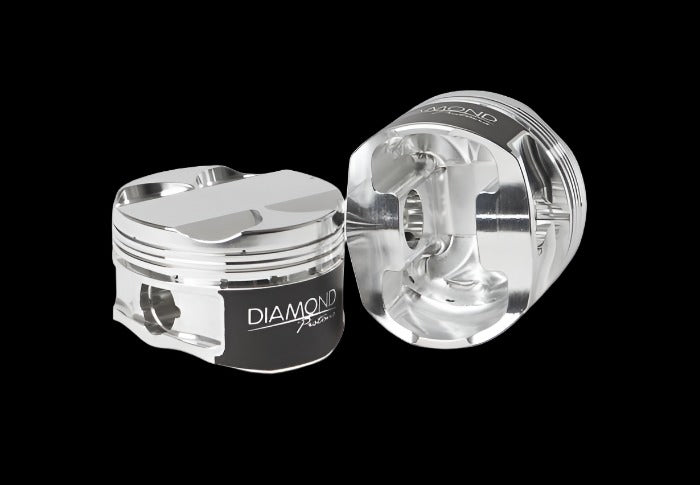

Diamond Forged Rebel Series Pistons Supra 2JZ-GTE 2J-GE 94mm Stroker 86mm STD -12.0cc 9.5:1

Diamond Forged Rebel Series Pistons Supra 2JZ-GTE 2J-GE 94mm Stroker 86mm STD -12.0cc 9.5:1

$1,355.00 USD
$1,355.00 USD
Sale Sold out
Shipping calculated at checkout.
  • 3D milling on piston crowns for ready to install finish
  • Side gas ports for better ring seal
  • Ratios figured for 87mm x .040 head gasket @ 8.621 deck
  • Top ring down dimension: .325"
  • Designed for pin buttons for maximum strength
  • Designed to work with MGP Rebel series Aluminum Rods
  • Premium H-13 .225W wrist pins included
  • Premium 1.5mm x 1.5mm x 3.0mm ring package included
  • Oversized valve pockets - for larger than stock valves
  • Valve pocket depth: .245" intake and .230" exhaust
  • 2618 material for High HP/Boost applications - rated for 2000hp

Specifications

More Information
Vendor Name Code Part Number 37109-6
Barcode 37109-6
Shipping Weight (Dimensional) 9.000000
Clearance Sale No
Availability Back Ordered
Part Type Pistons
Make Toyota / Lexus
Vehicle Model Supra MKIV
Model Supra TT MK4 93-98 JZA80, Supra NT MK4 93-98 JZA80, SC300/Soarer 92-00 Z30, IS300 01-05 XE10, GS300/Aristo 91-97 S140, GS300/Aristo 98-05 S160
Engine 2JZ-GE, 2JZ-GE VVTi, 2JZ-GTE, 2JZ-GTE VVTi
Rod Length 5.590" / 142mm
Rod Length Oversize Standard Length
Bore Diameter 86mm
Bore Oversize Standard Bore
Stroke 94mm (3.4L Stroker)
Compression Ratio 9.5:1
Compression Ratio Range 9.0:1 - 10.0:1
Pin Size 0.866" / 22mm
Included Ring Set 09053385
Included Pin Locks PB-37109-12
Included Pin H8662500225C
Head cc 45 cc
Dome cc -12.0cc
Compression Height 1.180" / 30mm
Brand Diamond Racing Pistons
Skirt Type Full Round
Piston Material 2618
Carb Legal No
Wrist Pin Wall Thickness 0.225"
Wrist Pin Dimensions .866" x 2.500" x .225"
Pin Material H13 Tool Steel
