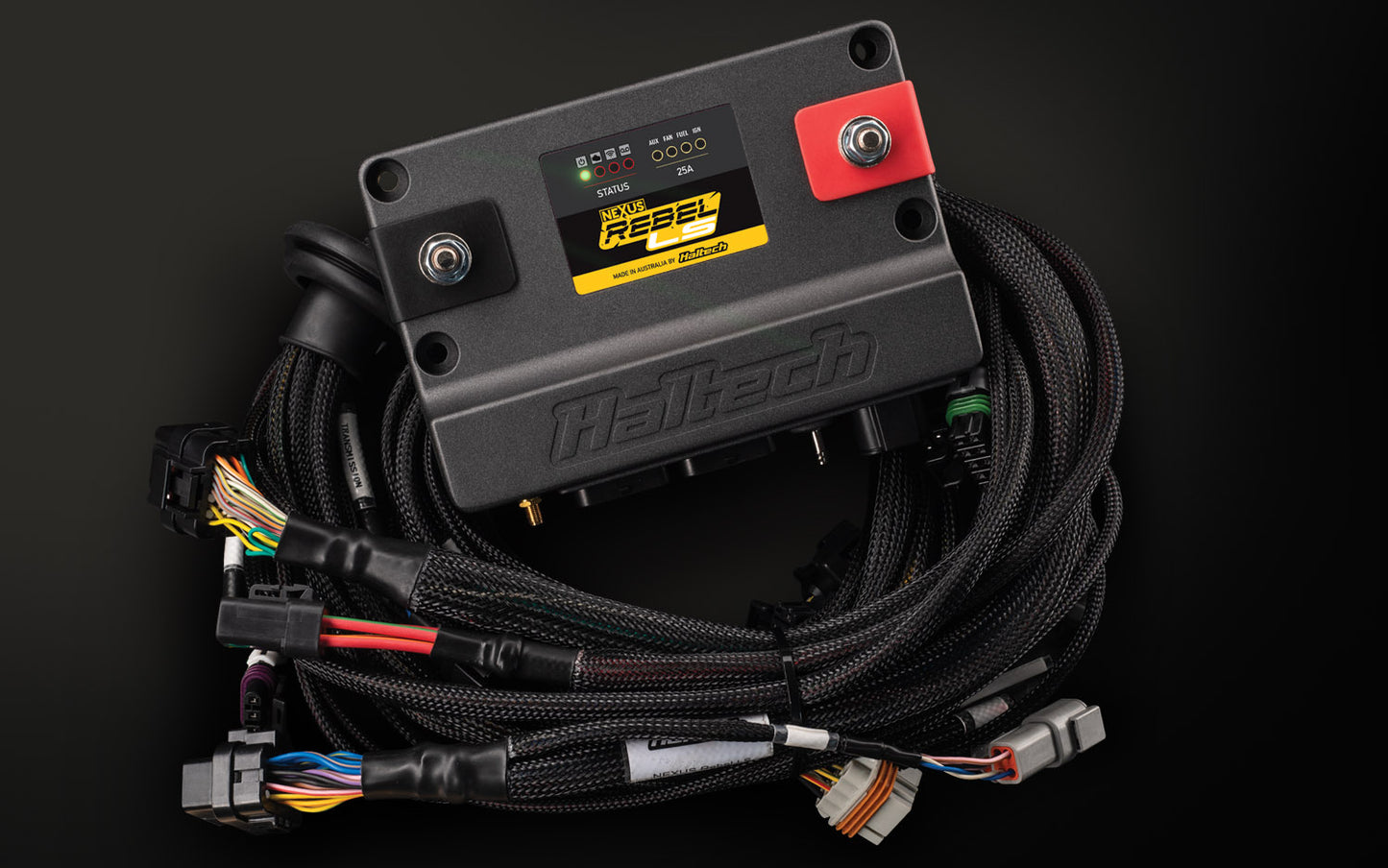

The latest addition to the Haltech Nexus Range is the Nexus Rebel LS, specifically designed for LS Gen III and IV engines.
Included in the kit is an easy-to-install engine harness kit, and start-up is a breeze thanks to the new LS Set-up Wizard in our NSP software, or via the new Haltech Connect App.
With the Rebel LS, all the hard work is done. It is the best, quickest, and easiest way to get your LS-swap up and running!
• ECU designed from the ground up to suit GM’s popular LS engine platform
• Supports both Gen III/IV engines
• Comes complete with an easy-to-install harness to suit multiple GM LS applications
• Easy set-up via the new Haltech Connect app
• Easy integration with Haltech dashes, PDMs, sensor kits, and accessories
| OUTPUTS | |
| Ignition | 8 Pre-Configured Outputs |
| Injector | 8 Pre-Configured Outputs (High Impedance Only) |
| Low Side Switched / Digital Pulsed Outputs (DPO) | 5 |
| 25A Outputs | 3 x Dedicated (Ignition / Injection, Fuel Pump and Cooling Fan) 1 x User Definable |
| INPUTS | |
| User Definable Analog Voltage Inputs (AVI) | 2 |
| Engine Position Inputs | 2 Dedicated Crank And Cam inputs |
| User Definable Synchronised Pulsed Inputs (SPI) | 4 (Can Be Programmed For AVIs) |
| Pre Configured Knock Inputs | 2 |
| On-board Wideband Controller (LSU 4.9 Only) | 1 (Expandable To 10 With Haltech CAN WB Modules) |
| Ignition Switch Input | 1 |
| COMMUNICATIONS | |
| CAN Bus Networks | 1 Dedicated Haltech CAN |
| High-Speed USB 2.0 (USB-C interface) | 1 |
| On-board Wi-Fi | YES |
| OTHER | |
| On-board Data Logging | 32MB |
| On-board MAP Sensor | 4Bar (Absolute) / 43.5 PSI Gauge |
| Oscilloscope | 4 Channel |
| 5V Sensor Supply | 1 |
| 8V Sensor Supply | 1 |
| Sensor Ground | 1 |
| FEATURES | |
| Easy Set Up Wizard | YES |
| Drive-By-Wire Throttle Support | 1 |
| Flex Fuel | YES |
| Closed Loop O2 Control | Dual Bank (Requires Additional Sensor / Controller) |
| Knock Control | Dual |
| Variable Cam Control | NO |
| Auto Trans Control | Coming Soon |
| Long Term Learning | YES – 3D |
| Data Logging | Laptop + Onboard |
| Anti-Lag Rotational Idle | YES |
| Launch Control | YES |
| Traction Control | YES |
| Tuning Table Resolution | 32 x 32 – 3D |
| Engine Protection | Multi-Level |
| CAN Networks | 1 (Haltech CAN Only) |
| Nitrous Control | YES |
| Boost Control | 3D Closed Loop |
| Flat Shift Control | YES |
| Shock Travel & Ride Height | YES |
| Race Timer | YES |
| Driveshaft And Engine RPM Targeting | NO |
